Wondering what the Xfinity gateway red light means? Stay invested throughout our guide!
Like any other electronic device in the networking field, a blinking or solid red indicates that a particular system complication has occurred.
With Xfinity, the red light on newer models is set to appear solid, and understanding what it means is vital for quick and effective troubleshooting.
To resolve the red light on your Xfinity gateway, check for any local Xfinity service outages and reset the service cable of the unit. Next, check the condition of the installed cables and perform a factory reset on your Xfinity gateway.
There is much more to discuss, so let’s get started!
What Causes the Xfinity Gateway Solid Red Light?
Although the red light on your Xfinity gateway is standard after outages, it may also be related to issues with the service in your area or local Wi-Fi issues.
Unfortunately, older Xfinity routers had separate red light patterns indicating the exact issue, while the new models only show solid red.
Here’s what could suddenly activate the red light on your Xfinity gateway:
More About the xFi Gateway Red Light
There is a slight difference in the settings and overall Xfinity and xFi gateway installation/setup.
Although the newer xFi gateway models tend to support better connectivity and are resistant to outages, complications could still result in a network outage accompanied by a solid red light.
Here’s what causes the red light on xFi gateway models:
- Loose or improper connection of the service cable.
- Wrong software configuration or outdated firmware.
- Issues with the xFi gateway’s security installation.
Note: The standard Xfinity gateway's red light indicates the connection with the Xfinity servers!
Xfinity Gateway Red Light – 6 Effective Solutions!
Tip: Follow the steps and instructions in order!

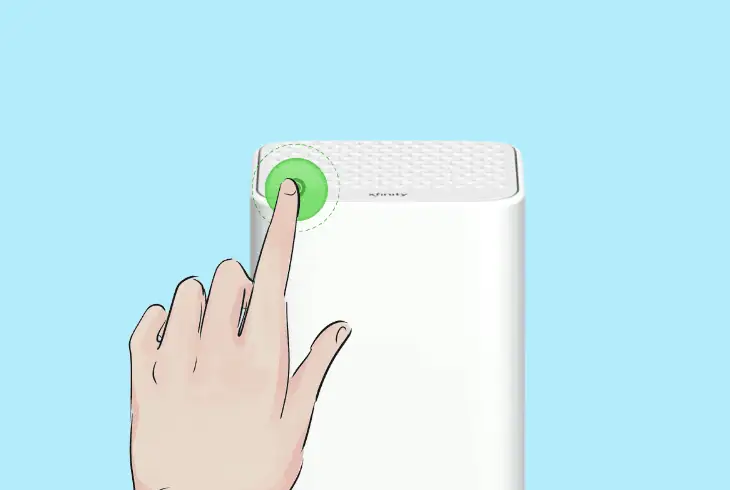

1. Power Cycle Your Gateway
You can achieve magnificent troubleshooting results simply by unplugging and reconnecting the power cable of the Xfinity gateway.
This circulates the system from the current power supply, allowing the hardware to discharge fully and refresh all networking settings, LED, and coverage.
Here’s how to conduct a power cycle on the Xfinity gateway:
- Locate the Power button on the Xfinity gateway’s top panel.
- Press and hold the power button for 5 seconds to power off.
- Disconnect the Power cable from the back of the gateway.
- Next, hold the power button of the gateway for 10 seconds.
- Re-install the power supply of the network unit into the A/C.
- Press the Power button once to turn on the Xfinity gateway.
The power adapter must be secured on both ends, and no damage should be inflicted on the connectors or the ports.
In case of any visual damage to the integrity of the cable, you must replace it with a new, proven-to-work cord and verify that the A/C power transfer is successful.
Tip: Test the Xfinity gateway in an alternative electrical source!
2. Check for Ongoing Xfinity Outages
An ongoing local outage in your area might be responsible for the occurrence of the red light on your Xfinity gateway and the sudden outage of the network.
There are two main possibilities for identifying an outage with your service, either by using the Xfinity app or the Xfinity website!

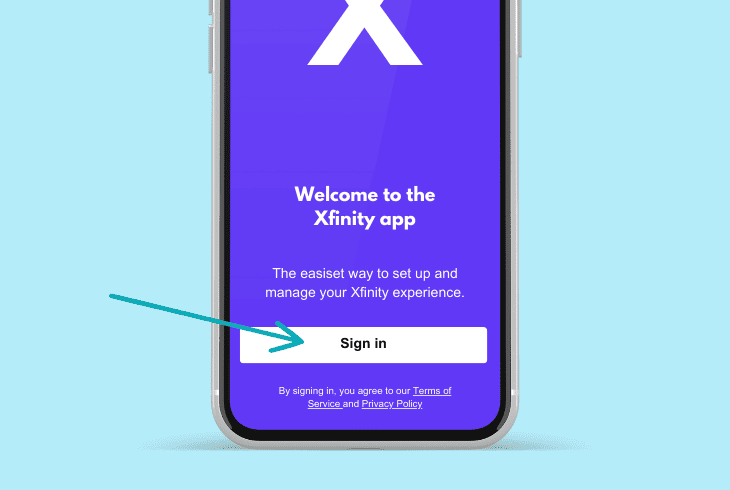

How to Check for Service Outages Via App?
- Open the application on your phone.
- Sign in to your Xfinity user account.
- Click “Services” at the top of the page.
- Then, look for a banner on the screen.
- Wait for the results in the outage table.

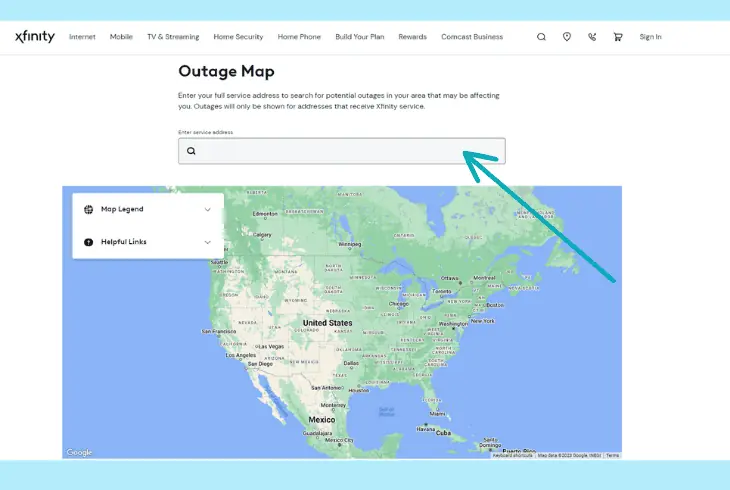

How to Check for Service Outages Via Browser?
- Open a web browser on your PC or phone.
- Type “Xfinity support” in the search field.
- Click on “Status Center” at the bottom part.
- Scroll down and select “Check for outages.”
- Type your location on the xFi Status map.
When technicians are working on an outage, they deactivate the internet connection in the area where the outage is located.
Hence, if your xFi gateway immediately reacts and indicates a red light, the problem may not be on your side, so checking for outages is crucial during the steps.
Info: An Xfinity maintenance or an unexpected outage can last up to 5 hours!

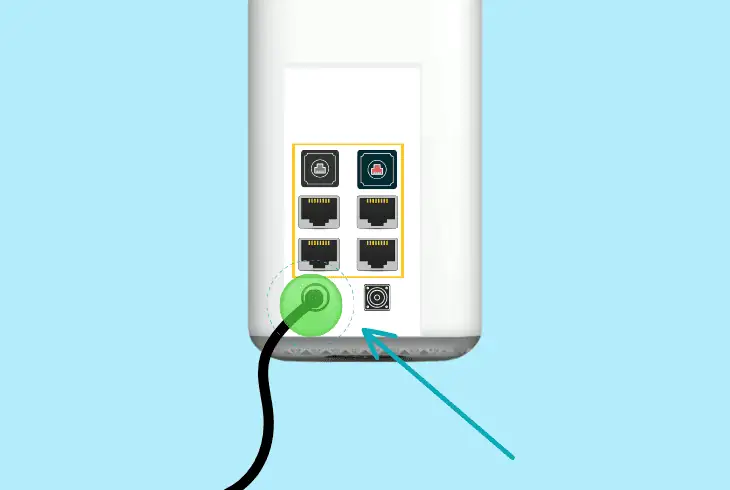

3. Reseat the Xfinity Service Cable
Reconnecting the service cable of the Xfinity gateway is one of the proven resolutions to the constant red light indicator.
As mentioned earlier, the Xfinity gateway provides information about its current state by the color codes of the LEDs, and red means a failed external connection.
Here’s how to properly reseat the service cable of the Xfinity device:
- Unplug the coaxial wire from the Xfinity master socket.
- Disconnect the other end of the cable from the gateway.
- Wait for 60 seconds while the gateway is disconnected.
- Finally, reseat the service coaxial cable on both ends.
- Check if the status lamp of the xFi gateway will alternate.
Notice: Keep in mind that loose or damaged coaxial cable is the main culprit for the red light!

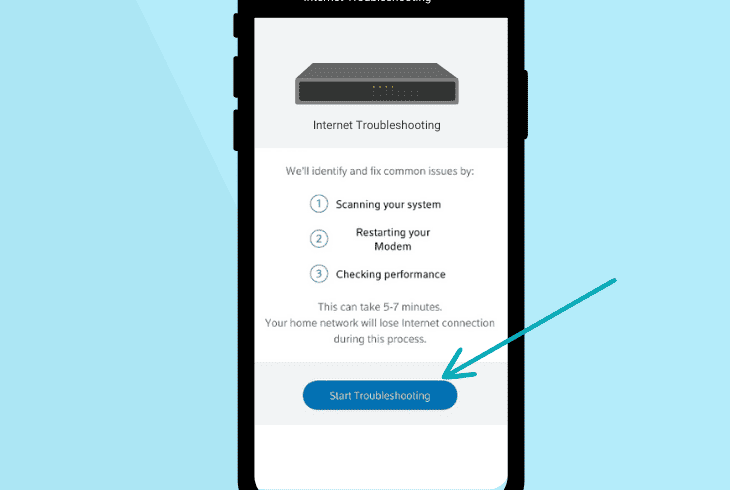

4. Utilize the Xfinity Troubleshooter
The red light on Xfinity gateway only appears whenever the internet is unable to reach the Xfinity modem.
There is a specialized troubleshooting option provided by Xfinity designed to eliminate installation issues with your equipment simply by running a prompt in the app or site.
Here’s how to activate the Xfinity troubleshooter in easy steps:
- Launch the Xfinity app on your mobile device or PC.
- Log in to your account using the xFi ID and password.
- Scroll down to “Manage Internet” and click the button.
- Select “Start Troubleshooting” to begin the restarting.
The modem restart will unload and reload the system firmware software to check if it’s on its latest version.
Remember that this action requires some time to execute, and you’ll have to wait about 2 minutes before launching the modem back to service.
Tip: If you don’t have the Xfinity app installed, restart it via the browser or the admin tool!

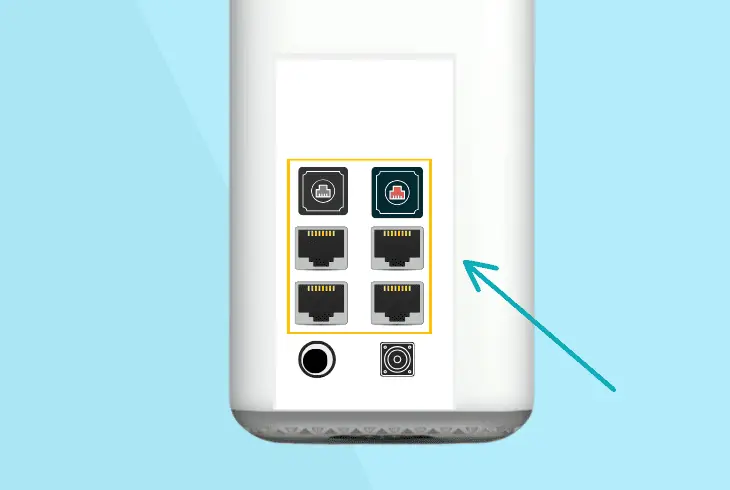

5. Disconnect Third-Party Devices
A third-party device with similar functions to the gateway could hurt the connectivity by causing a conflict with the Xfinity software.
Only the power and coaxial adapters are vital to the Xfinity gateway’s operations, so you must unplug any other LAN device that is potentially interfering.
- Unplug all cables from your xFi gateway without the Power and Coax!
If you’re using any sort of modem or another router, test your Xfinity gateway without the addon to determine the culprit.
If the red light on the Xfinity gateway remains without any other devices involved in the setup, the issue comes from the gateway.
How to Manage Xfinity Wireless Interference?
You should also avoid positioning the device emitting the same wireless signal as your gateway close to any of your Xfinity equipment.
The potentiality of signal interference remains as long as a device transmits Bluetooth, IR, or Wi-Fi signals close to the Xfinity gateway.
Note: Physical obstructions and objects could also cause physical interference!
6. Factory Reset the Gateway
The factory reset is one of the most efficient ways to eliminate issues with the Xfinity gateway by restoring the system to its default setup.
Setting up the gateway system once again allows for understanding the functions of the network better and avoiding simple misconfigurations.
Here’s how to factory reset the Xfinity gateway in easy steps:
- Locate the “Reset” button on the back panel of your modem.
- After that, press and hold the reset button for 10-15 seconds.
- Release the button after all of the gateway’s LEDs power off.
- Finally, wait until the Xfinity unit finalizes the reset procedure.
After performing the factory reset, your gateway will be returned to its factory settings, and you’ll have to configure your network settings again.
So, you can complete the initial setup through the Xfinity app or access the admin tool through a connected Wi-Fi/LAN device!
Note: The factory reset may take up to 3 minutes!
Whenever the Xfinity gateway red light, check for service outages in your area and power cycle the gateway.
If the issue persists, reinstall the service link connection of the device, minimize wireless/physical interference, and ultimately, factory reset the Xfinity gateway.
Follow us for more Xfinity and xFi troubleshooting!
