Wondering why the Honeywell thermostat not communicating with furnace?
In order to address any type of communication issues with the HVAC system, it’s important to understand the leading causes for the occurrence and what may potentially help.
Let’s learn more!
If the Honeywell thermostat isn’t communicating with the furnace, check if the power supply is correct and ensure that the thermostat’s wiring is installed properly.
You also need to perform a factory reset on the thermostat and check if the furnace door is closed.
Why Won’t Honeywell Communicate with HVAC?
Whenever a Honeywell thermostat is not communicating with the HVAC system, it means that you’re unable to operate the heating/cooling of the house.
Such type of issue could occur as a result of system power failure or more commonly an existing fault with the HVAC furnace.
Here’s why the Honeywell thermostat can’t communicate with the furnace:
How Does Honeywell Thermostat “Communicate” with HVAC?
Once the Honeywell thermostat is installed and all wires of the furnace and compressor are connected, you can operate the entire heating/cooling of the house.
A communication problem occurs when the thermostat is unable to send commands to the A/Cs or the furnace.
Let’s next troubleshoot!
Honeywell Thermostat Not Communicating with Furnace?
Tip: Follow the steps consecutively!
1. Check the Thermostat Wiring
The primary reason for failed connection with the HVAC furnace is improper thermostat wiring.
If you’ve tempered with the thermostat’s installation by any means or attempted to complete the initial installation all on your own, you might have connected the wires improperly.
To access the wires, remove the screws holding the wall unit and gently pull the compartment until the wires are exposed.
Here is the correct installation of Honeywell’s terminal wires:
- The blue wire connects with the “C” terminal.
- The white wire connects with the “W” terminal.
- The yellow wire connects with the “Y” terminal.
- The green wire connects with the “G” terminal.
- The red wire connects with the “R” terminal.
Check the Furnace Door!
While correcting the thermostat’s wiring, you should quickly check if the furnace door is closed all the way.
This is a common occurrence and users don’t usually pay much attention to it, but leaving the door open even for an inch will disrupt the communication with the thermostat.
Info: Once the terminal panel is accessed, there will be a letter label underneath each terminal.
2. Factory Reset the Honeywell Thermostat
Perhaps, the software settings of the Honeywell thermostat have been configured improperly.
The best recommendation to solve any communication issues is to restore the initial settings of the Honeywell thermostat and begin the programming process from scratch.
Follow these steps to perform a factory reset on the Honeywell thermostat:
- First, power off the thermostat and eject the batteries.
- Place the batteries facing the opposite electrical poles.
- Then, wait for 10 seconds while the thermostat is reset.
- Next, take out the batteries and insert them properly.
- Wait until the thermostat reboots and follow the steps.
Alert: Keep in mind that all remembered schedules and data will be erased from the thermostat!

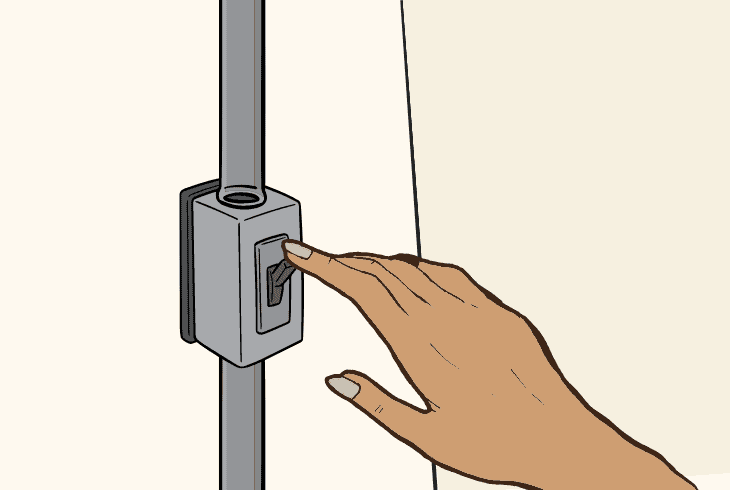

3. Reset the Power to the HVAC System
Commonly, to fix communication problems with the furnace, all you have to do is reset the power to the HVAC system.
The circuit breaker of your house has an individual switch that controls the power to the HVAC system, including the furnace, compressor, and boilers.
Follow these steps to reset the power of the HVAC system through the boiler:
- Access the circuit breaker panel in your house.
- Next, locate the switch that has “HVAC” above it.
- Then, push the switch downwards to cut the power.
- Wait for 15 seconds while there is no power supply.
- Push the switch to reactivate the system’s power supply.
Note: Keep in mind that while the power is deactivated, none of your HVAC systems will work!
Honeywell Thermostat Not Communicating with Boiler?
1. Replace the Thermostat Batteries
If the batteries are starting to wear out, some components of the HVAC system may start to show signs of communication problems with all installed components.
If the boiler in particular occurs offline to the thermostat, perhaps it’s an underlying battery problem you’re unaware of.
Simply insert two AA or AAA alkaline batteries, depending on the thermostat!
Tip: You should keep the batteries inside of the thermostat fresh to avoid future issues.
2. Check the Boiler’s Pressure Levels
Another reason why the Honeywell thermostat not communicating with the boiler is elevated or lowered boiler pressure levels.
Such type of malfunction with the boiler could lead to serious damage to the HVAC system, so it is important to act quickly and identify the culprit.
How to Reduce Pressure Levels of a Boiler?
The easiest way to reduce the pressure levels of a boiler is to open the filter valve coming out from the top, as long as it has one.
Otherwise, to drop the pressure is to use a drain-off valve to suck some of the water out or undo a radiator nut.
How to Increase Pressure Levels of a Boiler?
One way is to open both of the boiler’s in-built valves and wait until the pressure gauge reaches 1 to 1.5 bar.
The pressure gauge identifies the pressure levels of the boiler and it should stay at around 1.0 to 2.0 for proper boiler pressure levels.
Alert: If your boiler is defective, contact the manufacturer for servicing!
3. Defrost the Condensate Pipe
Once the boiler’s condensate pipe freezes, its functions will automatically cease to preserve the condition of the boiler.
When that happens, the thermostat will temporarily stop detecting the boiler in the system and therefore all functions that include heating will also be stopped.
Here are the steps to identify the condensate pipe and defrost it easily:
- Look for an outdoor pipe connected to the boiler.
- Once found the plastic white pipe, pour warm water.
- Keep pouring warm water until the pipe defrosts.
How to Factory Reset Boiler?
In order to restore the functionality of the boiler once the condensate pipe is defrosted, you must perform a factory reset.
Hence, locate the boiler’s factory reset button and hold it down for 10-15 seconds.
The reset button could either be located underneath or on top of the boiler.
Tip: To find the exact location of the boiler’s reset button, consult the user manual.
Honeywell Thermostat Not Communicating with Wireless Network?
1. Correct the Wi-Fi Settings of the Thermostat
If the Honeywell thermostat won’t stay connected to a Wi-Fi network for too long, it could be due to incorrect Wi-Fi settings.
If the connection is denied immediately, then it could be a simple mistake such as getting the Wi-Fi password wrong or selecting the incorrect network SSID.
To correct the Wi-Fi settings of the thermostat, go to Settings > “Network” > “Wi-Fi Radio” and ensure the feature is turned on first.
Next, verify that the correct network is selected in the “Network” menu and double-check the password.
Note: The default value of the password is on a sticker on the router’s bottom panel.
2. Reboot the Network Router/Modem
In case the Honeywell thermostat not communicating with wireless network after correcting the WiFi settings, the issue could be with the router.
To address any problems with the rate your router emits Wi-Fi connection, it is recommended to conduct a power reset (advanced reboot).
Here’s how to reboot the network router effectively:
- Hold the power button on the router for 5 seconds.
- Once the router turns off, unplug the power adapter.
- Wait for 60 seconds while the cable is unplugged.
- Re-attach the power adapter to the network router.
- Check if the Honeywell thermostat will stay connected.
Tip: While the router is disconnected, also unplug the service cable from the input panel!

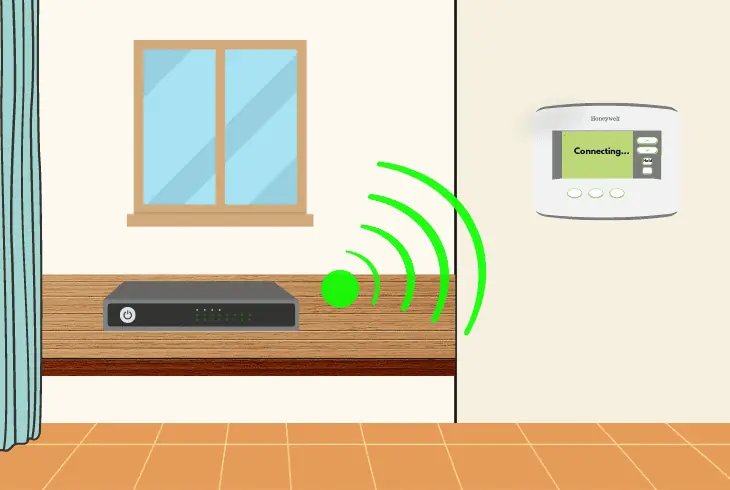

3. Check the Wi-Fi Network’s Coverage
The thermostat might be too far away from the network router for optimal Wi-Fi connectivity to exist.
The proper way to understand whether this is a coverage-related issue is to connect the thermostat to your phone’s hotspot.
If the thermostat stays connected, it is a router issue.
Turn on your phone’s “Mobile Hotspot” setting and navigate to the “Network” menu of the thermostat.
Then, select your phone’s hotspot connection from the page and enlist the connection password. Once hooked up, check if the Honeywell thermostat stays connected.
The Solution to Thermostat Network Coverage Issues?
Since you’re unable to relocate the thermostat, place the Wi-Fi router/modem or Wi-Fi extender closer to the thermostat.
This way you can enhance the strength of the connection the thermostat receives and ensure there will be no future downtime.
Tip: Keep the router as close as possible to the Honeywell thermostat!
Quick Recap:
Thus, whenever the Honeywell thermostat not communicating with the furnace, factory reset the thermostat and replace the batteries.
If the communication issues persist, reset the power to the HVAC system, inspect the wiring, and update the device’s OS firmware!
