Dell Inspiron 530 Won’t Turn On Amber Light? – Fix Guide

“My Dell Inspiron 530 won’t turn on amber light.” If you encounter this issue, it could be a lot of things causing it. Let’s look into each of them.

The Dell Inspiron 530 is an older model system, but they still run after years of use.

We came up with proven solutions that will help you resolve it in less than 15 minutes.

Don’t worry. We’ve got you covered!

To fix your Dell Inspiron 530 turning on problem, first, reboot it. Unplug your computer, then plug it in again. Try powering it on and see if the issue is cleared. If not, completely discharge your computer or replace the batteries on the motherboard.

Before proceeding to the actual troubleshooting steps, let us discuss the common causes you can’t turn on your Dell Inspiron 530.

Why My Dell Inspiron Won’t Turn On Orange Light

Why your Dell Inspiron won’t turn on and only shows orange light is usually due to a corrupted BIOS code.

You may also be dealing with a battery issue, loose memory cards, or faulty power cables. Luckily, we know the solutions to resolve them in no time.

Or, something strange is happening with your computer. We listed other possible causes of the problem below.

1. Failed Power Supply

The orange light indicates that the input power has failed. Loss of power is detected, so you should back up data or switch to a backup power source.

2. Motherboard Battery Issue

The main suspect is the motherboard if you see orange light. Other symptoms to look out for are constant beeping noise on the motherboard and the time and date that have been reset.

3. Loose Memory Cards

Loose or dirty memory sticks can cause your computer not to power up and the orange light to illuminate.

4. Faulty Power Cables

Power delivery issues can cause your Inspiron 530 to stop working. Damaged cables, especially when they’re old, can cause a lot of issues with your computer.

Let’s closely examine the different solutions to resolve this issue.

The next section will discuss the solutions in detail so you have a better idea of how to fix this error on your Dell Inspiron 530.

How to Fix Dell Inspiron 530 Won’t Turn on Amber Light

Before we go ahead with the solutions, we recommend restarting your computer to check if it resolves the issue.

Make sure you unplug it from the wall outlet and wait for a few minutes. Turn it on and check if your computer powers up.

In case a simple restart does not get it running again, you can proceed to the rest of these solutions:

Solution #1: Completely Discharge Your Dell Inspiron 530

If unplugging your computer and turning it back on again does not resolve the issue, you can try discharging it.

Any residual power in your computer’s circuit can cause the orange or amber warning light to illuminate.

There’s also a good chance that your computer won’t power back up.

One trusty troubleshooting solution you can use is completely discharging your computer’s circuit.

Doing this ensures that the next time you turn it back on, it won’t overload the circuits and cause them to crash and stop working.

Here’s how to discharge your computer:

1. Unplug your computer from the power outlet.
2. Press the power button.
3. Hold it for around 20 to 30 seconds.
4. Plug your computer into the power outlet.
5. Push the power button to turn it back on.

Note: Ensure your power supply indicator light turns on when powering up your computer.

Solution #2: Replace the CMOS Battery on Your Motherboard

The motherboard on your computer usually comes with a battery that helps in powering up your device’s BIOS.

Even though it’s small, it’s an essential piece of equipment that enables your computer to boot up and operate properly.

When this particular CMOS battery is discharged, your computer won’t be able to load the BIOS information and gets confused.

If this happens, your computer will throw out errors and refuse to start up.

For the Dell Inspiron 530, this error comes in the form of an illuminated amber or orange light.

Replacing the CMOS battery on your computer’s motherboard can resolve this issue.

Here’s how to do it:

1. Open the side panels of your Dell Inspiron 530.
2. Find the CMOS battery on your motherboard.
3. Use your fingers to pop it out.
4. Put in a new one with the positive side up.

Note: You should be able to spot the CMOS battery as soon as you open the side panels of your computer.

Solution #3: Swap Out Your Computer’s Power Cables

Power delivery issues can also cause your Inspiron 530 not to turn on and the amber indicator to light up.

If you suspect this particular cause of the problem, one of the possible steps that can solve this issue would be to change your computer’s power cables.

You’ll need to change out the faulty cables to resolve this issue.

Here’s how to change your computer’s power cables:

1. Turn off your computer and unplug it from the wall outlet.
2. Remove the power cables from the power supply unit.
3. Get a new power cable for your Inspiron 530.
4. Plug one end of the cable into the power supply unit.
5. Plug the other end into the wall outlet and turn your computer on.

Note: You can get compatible power cables from online retail websites like Amazon.

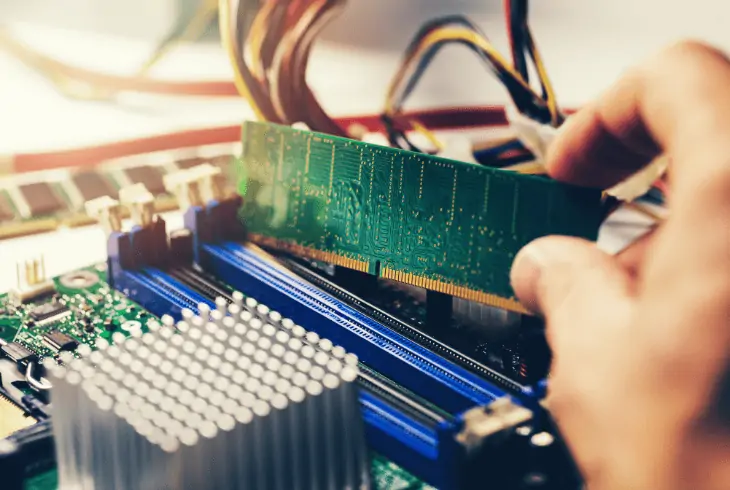

Solution #4: Remove and Clean Your Computer’s RAM

If your Dell Inspiron 530 won’t turn on and the amber indicator light illuminates, you know there’s something wrong with your system.

A loose or dirty RAM connection is one of the possible issues you’re facing if this happens to your computer.

You can remove the RAM modules and clean the contacts to fix this problem.

Even though you need to open up your computer, it’s incredibly easy, and you should be able to complete this step in under 5 minutes.

Here’s how to remove and clean your RAM modules:

1. Open your computer’s side panel.
2. Locate the RAM on your computer’s motherboard.
3. Find the plastic tabs at the end of the RAM stick.
4. Press down on these tabs until the RAM sticks pop out.
5. Clean the contacts using a pencil eraser.

Note: Return the RAM sticks back into the slots by pushing them until the tabs lock them in place.

Solution #5: Remove all PCI Components from Your System

If it’s not the memory modules, there are a few more components that you can remove from your computer.

Don’t worry since unplugging them would be temporary. You’ll still need to put them back in to get your computer up and running again.

Apart from the memory modules, there are other components that are plugged into your motherboard.

You want to remove the other parts that are connected so you can find what’s causing the issue.

Here’s how to properly remove the PCI components and put them back in:

1. Open your computer’s side panel.
2. Locate the parts plugged into the PCI ports on your computer.
3. Unplug components like your GPU.
4. Disconnect peripherals like the mouse and keyboard.
5. Plug the parts back in and turn on your computer.

Note: You’ll be able to hear beeps while starting up your computer.

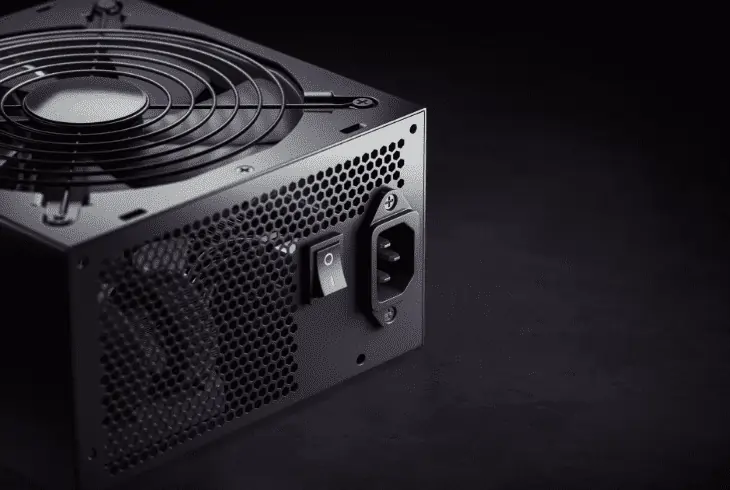

Solution #6: Replace the Power Supply Unit

Finally, if all of these solutions fail, it means that you’re dealing with a power supply issue. The power supply unit of your computer is probably fried.

The Dell Inspiron 530 is an older computer model, and the parts will be more than 5 years old.

If this is the case, replacing your power supply is one of the quickest steps you can take.

Since the Dell Inspiron 530 is an older model, there’s a good chance that parts are not going to be readily available.

Here’s how to replace your computer’s power supply unit:

1. Open your computer’s side panel.
2. Locate the power supply found in the upper corner of your diagram.
3. Remove the power cables from the motherboard.
4. Remove the power cables connecting the hard drive and DVD drive.
5. Replace the power supply and plug the cables back in.

Note: The cables and connectors on your power supply are included if you choose to get a new one.

That’s it! You can also choose to replace your computer’s motherboard if none of these solutions work.

Feel free to contact Dell customer support as they’re going to be happy to fix your computer.

Read Next: Why Does My WiFi Keep Turning Off on My Laptop?

Bottom Line

Is your Dell Inspiron 530 won’t turn on amber light? Now that you know the causes and how to fix them, you must follow the steps described above.

They’re easy enough that you should be able to perform them even though you don’t have any technical experience.
