Wondering what is Peloton error code B0202? So, stay with us throughout this guide to know!
The Peloton Bike error B0202 typically indicates an issue with the resistance motor or knob on a Bike and Bike+ models.
The solution requires a thorough inspection of the Peloton bike wiring, power source, software/firmware, and many other surrounding factors for this issue…
To resolve the Peloton Bike error B0202, begin with a power circulation and an inspection of the resistance motor, knob, and mount. Also, you must verify that all the wiring in the Peloton setup is intact by checking the connectors, cables, and input ports.
Let’s continue to unwrap!
Deciphering the B0202 Peloton Error Code?
As mentioned, the B0202 error code appears on Peloton Bike and Bike+ due to a fault with the resistance motor or knob.
This is the brake firmware of the bike, and when something is causing issues with the mechanism, the Peloton bike will indicate the fault by showing the error B0202.
- Many factors are involved, such as the aspects revolving around the mechanism and the wiring.
So, the best way to uncover the causes is to review all potential suspects for bike error B0202.
Here’s everything that can cause Peloton error code B0202:
The possibilities do not appear as much, but there is much to inspect, so let’s jump straight in!
How to Fix Peloton Error Code B0202 in Easy Steps?
Tip: Follow the steps chronologically!
1. Power Cycle Your Peloton Bike!
The first step is as simple as a restart but advanced enough to solve the Peloton Bike’s error B0202 and restore the resistance motor mechanism’s functionality.
The so-called “power cycle” method is harmless, will not erase anything from your bike, but will reset all operating services.
Here’s how to power cycle your Peloton Bike in easy steps:
- First, power off your Peloton Bike entirely.
- Use the power button on the tablet’s back.
- Unplug the power connector from the wall.
- Also, unplug the cord from the A/C adapter.
- Wait 60 seconds with the bike unplugged.
- Reconnect your bike’s power equipment.
Whenever your Peloton Bike is power cycled, check whether the resistance motor works by adjusting the resistance from the knob. If you still see error B0202, continue reading ahead.

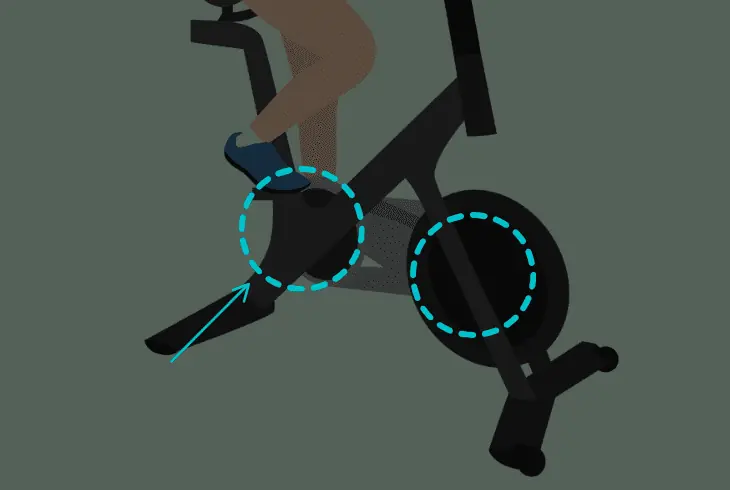

2. Check the Resistance Mechanism
The resistance motor and all the equipment surrounding the mechanism are responsible for the bike’s reversed pressure when pedaling.
When the resistance motor is facing trouble with one of the components that are involved, the bike would show error B0202 and may not work correctly.
So, to resolve the issue, you must inspect all of the involved components/factors:
Check the Resistance Knob
The resistance knob is the handle that allows you to increase or decrease the bike’s flywheel resistance by rotating the knob left or right, respectively.
So, whenever the resistance knob is not adequately tightened or seated correctly, the motor will stop working and show error B0202.
Hence, you must feel whether the resistance knob is loose, and if yes, tighten the handle to fix the error.
However, if the knob appears intact, you must inspect all the other aspects involved.

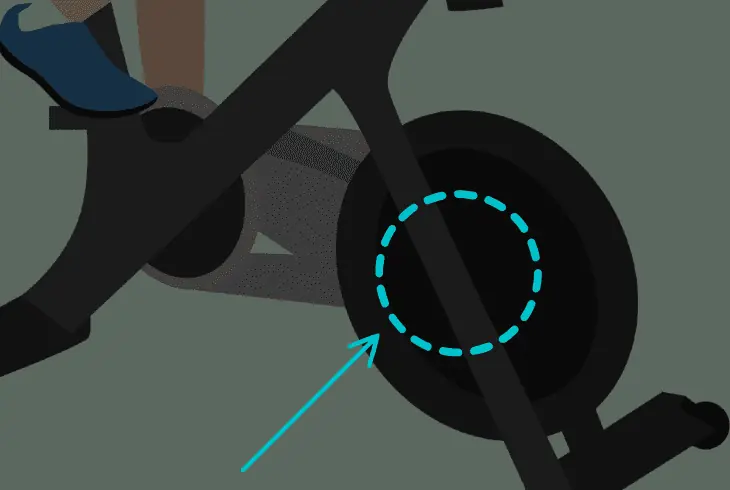

Check the Resistance Motor
The resistance motor is located in the resistance motor mount at the front side of the Peloton Bike and must be seated properly.
Any misalignment between the resistance motor and the mount may cause the motor to malfunction and show error B0202 as an indication of the fault.
Check the Resistance Wires
You must verify that the resistance motor cables are correctly connected to the motor and the resistance motor mount.
If any of those wires are loose or disconnected, the Peloton Bike’s resistance motor will stop working, resulting in error B0202.
Check the Resistance Mount
The resistance motor mount is another significant factor, which, when defective, damaged, or loose, will prevent the motor from functioning.
This causes error B0202 and can be solved by replacing the resistance motor mount, especially whenever there are visual faults and damage.
Note: When you’re ready with the inspection, perform a secondary power cycle!
3. Verify the Peloton Bike’s Wiring!
The power connections in your Peloton Bike are fundamental for the proper functioning of the resistance mechanism.
There are four different power connections in your Peloton Bike that are powering the entire setup, and all of them are fundamental to prevent errors such as B0202.
The power connections in a Peloton Bike are quite a few, and you must properly inspect all of them to verify that they are not disconnected or loose.
Tip: Also inspect the cable connectors for bents or other damage!

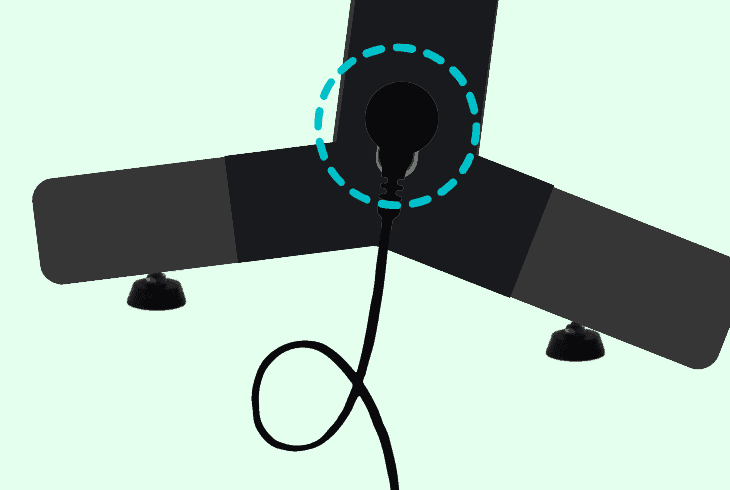

#1 – A/C Cord/Adapter
The first and most important link is the power transfer, which consists of two separate cords, one connects to the outlet and the other to the adapter.
We recommend unplugging both the connector from the mains and the connector from the power adapter to inspect for any faults.
There is one last connection to check between the power adapter and the port on the Peloton bike itself, which is a USB-C connector.
- The connector also has an LED light, which must turn white when the bike is connected to power and receives sufficient voltage from the A/C source.
Note: If the USB-C connector LED is not illuminated in white when connected, your Peloton bike’s power equipment is faulty.

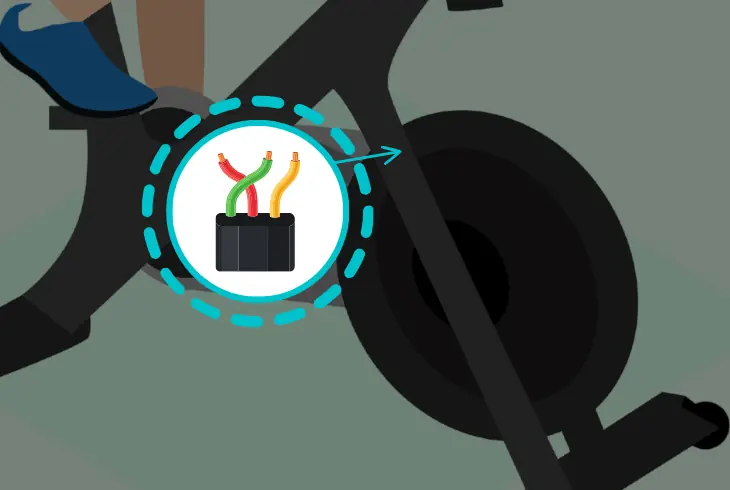

#2 – Inner Wiring Cable
The inner wiring cable in your Peloton Bike setup connects the electrical income with the bike’s mechanism.
The inner wiring cable is located underneath the frame, has a USB-C connector, and must be tightly connected to the respective USB-type C port without obstructions.
#3 – Sensor Board Cable
The sensor board cable is located at the front part of the Peloton Bike and connects to a port on the front side of the frame into the sensor board.
Again, the wire uses a USB-C connector, so you must unplug and replug the cable into the respective port to verify that the bond is secured.
#4 – Lower Handle Cable
The lower handler cable connects the sensor board with the sensor board cable coming from the frame, visible through the brake.
Again, there is a USB-C connector that you must unplug and replug from both the sensor board cable and the back of the Peloton bike’s touch screen.
Note: Any wiring or cable connectors/terminal defect must be reported to Peloton Customer Service for a qualified inspection and resolution.

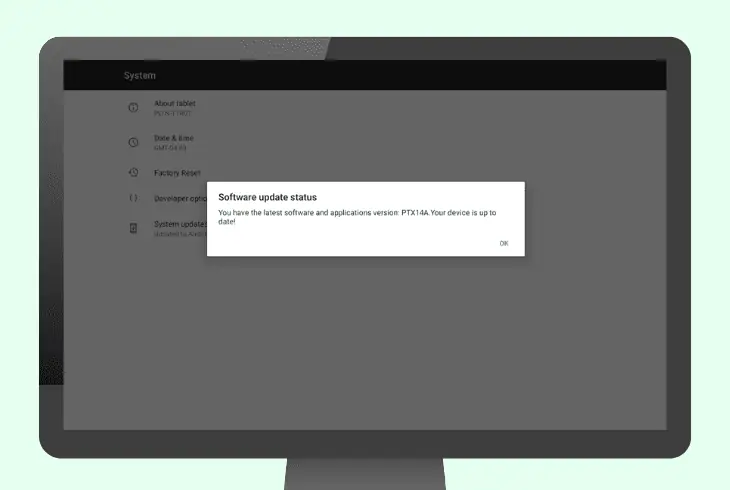

4. Update Your Peloton Firmware
Another cause for Peloton Bike error code B0202 is outdated firmware, in which case the error would be a simple software-related bug.
So, the quickest way to exclude this possibility is to test updating the Peloton Bike to the most recent software version and then testing the resistance.
Here’s how to update Peloton Bike firmware in easy steps:
- On the Peloton bike tablet, go to “Settings.”
- From there, enter the “Device Settings” tab.
- Next, tap on “About Tablet” under “System.”
- In there, tap on the “Software Updates” tile.
- Wait until the Peloton Bike is fully updated.
Reminder: When the update is ready, check whether error B0202 is still there!

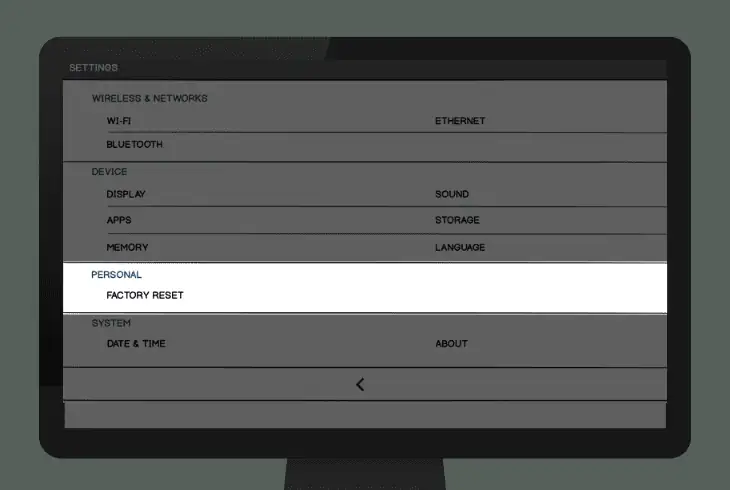

5. Factory Reset the Peloton Bike!
If you’ve tried everything, but nothing helps, perhaps error B0202 is appearing due to a bug in your Peloton Bike or Bike+ system.
Luckily, there is an easy way to factory reset your bike and erase any system errors, primarily if software conflicts cause the error.
Here’s how to factory reset the Peloton Bike in easy steps:
- First, verify that the Peloton bike is working.
- From the tablet, go to the “Settings” option.
- Next, select and enter the “System” section.
- From there, navigate to the “Factory Reset.”
- Select the option and confirm the process.
Your Peloton Bike will shortly begin to factory reset, and this may take a couple of minutes to complete, so remain patient.
When ready, you’ll be prompted to set up the bike from scratch, and when done, the resistance mechanism should be working correctly.
Warning: The factory reset will erase your Peloton Bike saved data and settings!
Need More Help?
If nothing helps and your Peloton Bike’s resistance mechanism is not working due to error code B0202, you must seek qualified assistance.
We recommend checking the product’s warranty first and contacting Peloton Customer Support or the local merchant for additional help.
Quick Recap:
Hence, whenever Peloton error code B0202 appears, first power cycle the bike and check the resistance mechanism knob, motor, and mount.
If everything appears intact, the next step is to inspect all the wiring cables and connectors and perform a bike factory reset.
